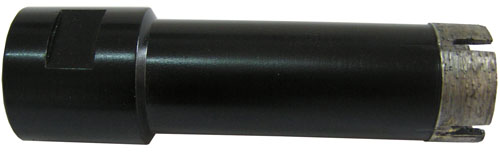

Sintered Crown Core Bits

Our Core Bits are thin wall drilling tool with a hole through the center that let water feeds into and removes sediment stone chips and allows the Core pedestal to pass through the Bit and into the Core barrel.

Our Drill Bits, used with high quality diamond and strong bond, sintered into a mould, are Laser welded. They are high diamond concentration provide aggressive cutting action, excellent for drilling marble and granite with high performance and durable life. They are designed with 5/8"-11 or M14 or M10 female thread and attached with a composite elasticity gasket so they can be mounted to any angle grinder and work on stone with vibration-proof.

We offer many adapters. Adapter unit screws into a Drill Bit to affect operative compatibility between different machines.

Sintered Non Core Bits

A non Core Bit is a drilling tool with a hole through the center that let water flows and removes sediment stone chips. It drill the stone complete section with no core.

They are designed with composite threaded both with G1/2" male threaded and 5/8Ħħ-11 or M14 female threaded, so that they can not only be mounted to any angle grinder but also can be used on CNC machine.

Attached with a composite elasticity gasket with vibration-proof is available for all drill bits.

Available in G1/2", 5/8Ħħ-11, M14, M10, 3/8Ħħ Shank, 1/2Ħħ Shank on customer's order.

We offer many adapters. Adapter unit screws into a Drill Bit to affect operative compatibility between different machines.

It is available on request upon a specific drawing of customer in any diameter and length requested.

Customer Logo printed is available on request for volume order.
