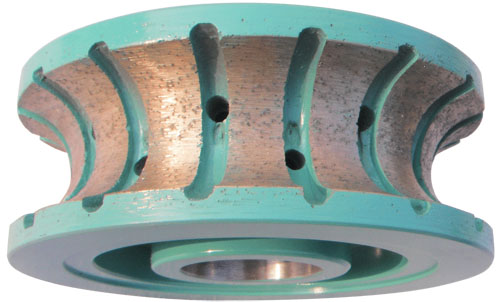

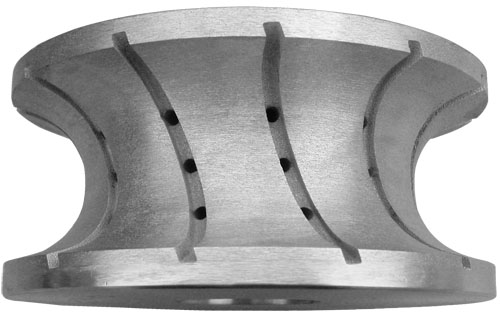

CNC Profile Wheels

We offer the high quality and reliability of CNC profiling wheels for the profiling of granite, marble and synthetic stone.

They are sintered and welded in a mould at same time under strict guidelines with the best diamond available.

Segmented tools are for aggressive stock removal and continuous rim for a smoother finish.

Available upon a specific drawing of customer, we can make any wheel in any diameter requested and with a combination of many different shapes.

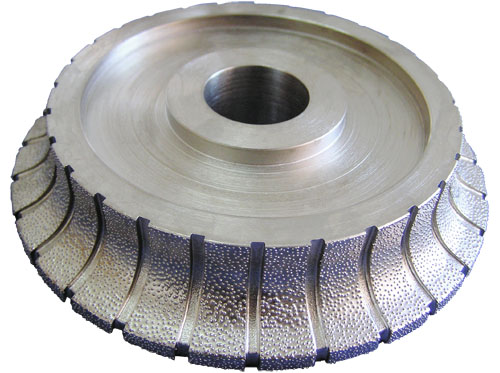

Vacuum Brazed CNC Profile Wheels

They are great for grinding without bouncing or loosing their shape. They are perfect to be position 2 and 3 in the set of tools.

The set of tools consists of 3 metal bonded diamond wheels perfectly matched to 3 resin diamond polishing positions. This makes it possible to obtain the maximum degree of finishing without the need for manual working.

We strongly incline the set of tools consists of 1 sintered metal bonded profile wheel as position 1, 2 Vacuum brazed wheels as position 2 and 3, and then matching to 3 resined polishing wheels as position 4, position 5 and position 6.

Standard bore is 35mm, available in other bores. Our wide ranges of profile wheels are suitable for use on all major CNC machines

Available on request for Marble and Granite, upon a specific drawing of customer, these wheels can be made in any diameter requested and with a combination of many different shapes.

Delivery time is less than 4 weeks.

Customer Logo printed is available on request for volume order.
